Fixed TDLAS Remote Methane Natural Gas Smell Detector Landfill Biogas Digester

Name: Fixed TDLAS Remote Methane Natural Gas Smell Detector Landfill Biogas Digester
Brand: AiLF
Price: 32000 USD

Buy cheap Fixed TDLAS Remote Methane Natural Gas Smell Detector Landfill Biogas Digester product

Price : $32000~$40000

Packaging Details : 45*33*28cm 8.2kg

Weight : Around 5.5kg

Power Consumption : 20W

Certification : ATEX

Delivery Time : 7-10 Work Days

Detection Method : Laser Absorption Spectrum

Model Number : P20

Operating Temperature : -10°C to 70°C

Usage : Gas Storage Station

Target Gas : Methane (CH4)

Detection Limit : 5 ppm • m

Response Time : 0.05S

Brand Name : AiLF

MOQ : 1

Payment Terms : T/T

Dimension : 139mm x 139mm x 263mm

Supply Ability : 200 Units Per Month

Operating Humidity : 0% to 98% RH (Non-condensing)

Enclouse Protection Class : IP68

Place of Origin : Shandong，China

Product Name : Pan tilt On Site Laser Methane Leak Monitoring

Concentration Range : 0-50,000 ppm • m

Contact Now

Landfill Biogas Digester Fixed TDLAS Laser Methane Leakage Inspection Monitoring

Description:

The P20 Pan Tilt laser gas leak monitoring system is an advanced laser methane detector for pipelines,Landfill, Biogas Digester and gas storage facilities. The Remote laser methane leak monitoring systems work according to the TDLAS principle (Tunable Diode Laser Absorption Spectroscopy) for the detection of methane. This laser method has the advantage that it is very sensitive at the specific measuring wavelength of methane (λ = 1.65 μm) and has no relevant cross-sensitivities to other gases in the atmosphere, e.g. exhaust gases from other cars.

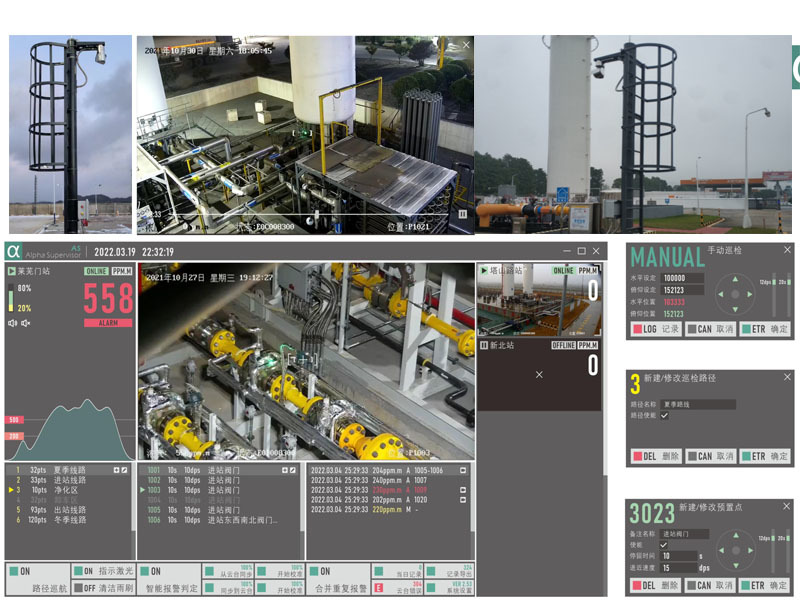

P20 Pan Tilt Gas Leak Monitoring System is a 24/7 of solutions for automated continuous gas leak detection. P20 Gas Leak monitoring are designed to operate 24/7 in oil & gas locations. They are configured for continuous monitoring for Methane gas leaks, and to automatically alert, quantify and report leaks to the control room through a dedicated software system.

How Pan Tilt P20 open path works:
The laser emits a narrow beam of light at a wavelength that matches the absorption profile of the target gas. As the beam passes through the gas, some of the light is absorbed by its molecules. A receiver then captures the reflected light, and by analyzing how much was absorbed, the system determines the gas concentration. It's designed for continuous monitoring of infrastructure like gas pipelines and can be programmed to scan specific routes.

Fixed TDLAS Remote Methane Natural Gas Smell Detector Landfill Biogas Digester
Features:

Fully automatic: Pan Tilt P20 Open-Path operates autonomously and does not require a separate power source.

Fast detection: Detects gas leaks faster than conventional methods. Detection time 0.1 sec.

Non-stop operation: Pan Tilt P20 Open-Path works 24 hours a day all year round.

Sensitive to methane only: The Pan Tilt P20 open path laser monitoring is precisely calibrated to detect methane and ignores other gases, providing accurate readings without false alarms.

Network monitoring: Pan Tilt P20 Open-Path can be integrated into a mesh network with centralized control, allowing the operator to receive real-time data from all connected devices.

Dust and rain protection: Pan Tilt P20 Open-Path meets the IP66 protection standard and safe from harsh weather conditions like rain, snow, or sandstorms.

Receiver and transmitter self-test mode: To ensure accurate methane detection.

High sensitivity: Pan Tilt P20 Open-Path determines the leakage of any mixture in which 1% methane is present.

Various useful features: Availability of heated optics, non-volatile memory, real time clock, auto-zero and built-in signal processing algorithm

Technical Parameters:

Model	P20	Detection Subject	Methane(CH4)
Measuring Principle	TDLAS	Detection Lase「Class	Class I Eye safe
Resolution	3 ppm·m	Indication Laser Class	Class IIIR No Direct Sight or Instrument Observation
Response Time	0.05s	Explosion-proof Grade	ATEX Exib 11B T4 Gb
Concentration Range	0 ~ 50,000 ppm·m	Enclosure Protection Class	IP68
Maximum Detection Distance	150m	Operating Temperature	-40 ~ 70 ℃
Pan-tilt Control	Azimuth 360 °&Elevation +/-90 °	Operating Humidity	< 90%RH, no condensation
Power Consumption	20W	Main Unit Dimension	139x 139 x 263mm
Main Housing Material	Stainless Steel	Weight	5.5 kg

Multi Application:

P20 's ultra-low power consumption supports solar power supply and can be connected to the backend system via 5G network. Its compact size and weight, similar to a surveillance camera, make it easier to install and dismantle.

Fixed TDLAS Remote Methane Natural Gas Smell Detector Landfill Biogas Digester

Pan Tilt Scanning Natural gas leak monitoring systems are used in various industries, including:

Oil and Gas:

Monitoring pipelines, storage facilities, and processing plants for leaks.

Manufacturing:

Detecting leaks in industrial processes involving toxic gases.

Energy:

Monitoring gas distribution networks and power plants.

Chemical:

Detecting leaks in chemical plants and storage facilities.

Wastewater Treatment:

Detecting leaks in biogas systems and other processes involving potentially hazardous gases.

Fixed TDLAS Remote Methane Natural Gas Smell Detector Landfill Biogas Digester
